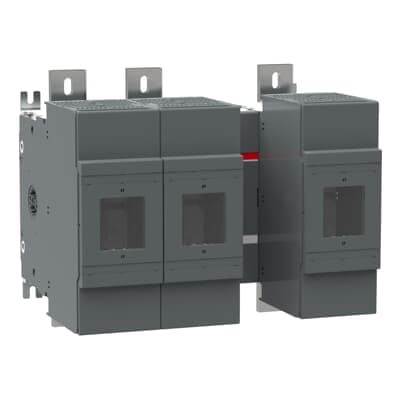

Product Model
OS1250D01P
Selling Points
- 1High-quality materials ensure durability and reliability.
- 2Front-operated design for easy handling and control.
- 3Class DIN rating for compliance with international standards.
- 41250A current capacity for robust performance in various applications.
- 5Includes handle and shaft for secure operation and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 294 mm | Product Net Height | 209 mm |
Product Net Depth / Length | 356 mm | Product Net Weight | 11.9 kg |
Fuse Size | NH4 | Fuse System | DIN |
Mounting Type | Base mounting | Number of Poles | 1 |
Operating Mode | Front Operated | Power Loss | at Rated Operating Conditions per Pole 75 W |
Rated Operational Voltage | Main Circuit 690 V AC | Standards | IEC 60947-3 |
Terminal Type | Lug terminals | Tightening Torque | 50 ... 75 N·m |
Tightening Torque | 50 ... 75 N·m | Object Classification Code | Q |
ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
eClass | V11.1 : 27371401 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA114035R1001 |
Specifications may be subject to change without notice
