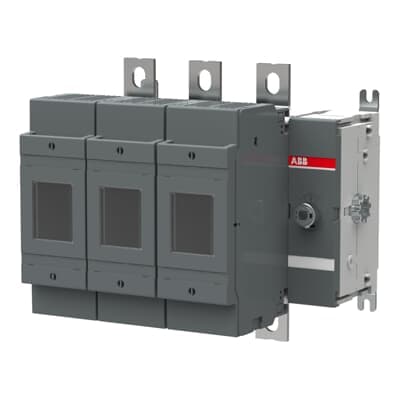

Product Model
OS250D30-3
Selling Points
- 1High Current Rating: Rated permanent current Iu, 80 A for robust electrical protection.
- 2Durable Construction: Complete device in housing with IP65 protection for front side, ensuring durability.
- 3Versatile Mounting Options: Suitable for front mounting 4-hole, providing flexibility in installation.
- 4Compliance with Standards: Meets EU Directive 2011/65/EU and Amendment 2015/863, ensuring RoHS compliance.
- 5Reliable Operation: Designed for main switch, safety switch, and maintenance/service switch applications, ensuring reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 270 mm | Product Net Height | 230 mm |
Product Net Depth / Length | 170 mm | Product Net Weight | 3.5 kg 7.8 lb |
Fuse Size | NH0 NH1 | Fuse System | DIN |
Mounting Type | Base mounting | Number of Poles | 3 |
Operating Mode | Front Operated | Power Loss | at Rated Operating Conditions per Pole 13 W |
Rated Operational Voltage | Main Circuit 690 V AC | Standards | IEC 60947-3 |
Terminal Type | Lug terminals | Tightening Torque | 30 ⦠44 N·m |
Tightening Torque | 30 ⦠44 N·m | ETIM 8 | EC001040 - Fuse switch disconnector |
ETIM 9 | EC001040 - Fuse switch disconnector | UNSPSC | 39122233 |
IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA022745R8320 |
Specifications may be subject to change without notice
