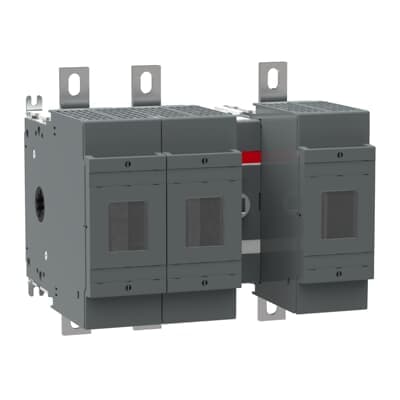

Product Model
OS400D21
Selling Points
- 1The OS400D21 features sophisticated control systems designed to optimize industrial processes.
- 2Enjoy real-time monitoring capabilities to ensure continuous operation and minimize downtime.
- 3Built with high-quality components, the OS400D21 ensures reliable performance in demanding environments.
- 4Equipped with advanced safety features to protect personnel and equipment from potential hazards.
- 5Designed to be scalable, the OS400D21 adapts to various industrial needs, from small to large-scale operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 193 mm | Product Net Height | 255 mm |
Product Net Depth / Length | 230 mm | Product Net Weight | 6.3 kg |
Fuse Size | NH0 NH1 NH2 | Fuse System | DIN |
Mounting Type | Base mounting | Number of Poles | 3 |
Operating Mode | Front Operated | Power Loss | at Rated Operating Conditions per Pole 30 W |
Rated Operational Voltage | Main Circuit 690 V AC | Standards | IEC 60947-3 |
Terminal Type | Lug terminals | Tightening Torque | 30 ⦠44 N·m |
Tightening Torque | 30 ⦠44 N·m | Object Classification Code | Q |
ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
eClass | V11.1 : 27371392 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA150267R1001 |
Specifications may be subject to change without notice
