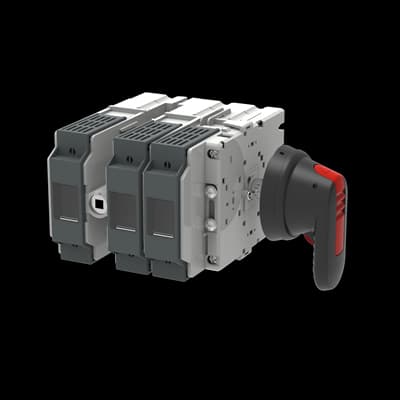

Product Model
OS40FDS30000
Selling Points
- 1IP65 Protected Handle: The handle is IP65 protected, ensuring durability and resistance to environmental factors.
- 2Adjustable Shaft: The shaft is adjustable for various installation depths, reducing installation time and costs.
- 3Side-Operated Mechanism: The switch fuse features a side-operated mechanism for easy operation and maintenance.
- 4Padlockable in Off-Position: The fuse link is fully isolated in the off-position, and the handle is padlockable for enhanced safety.
- 5Modular Design for Easy Installation: The modular design allows for 2-, 3-, and 4-pole installations with different switching mechanism placements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pollution Degree | 3 | Product Net Width | 126 mm |
Product Net Height | 97 mm | Product Net Depth / Length | 141 mm |
Product Net Weight | 0.7 kg | Cable Cross-Section | 2.5 ... 25 mm² |
Connecting Capacity | Stranded 0.75 ⦠10 mm² Flexible 0.75 ⦠10 mm² | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 40 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 40 A | Fuse Size | NH000 |
Fuse System | DIN | Handle Type | Handle and shaft not included |
Mounting Type | Base mounting | Number of Poles | 3P |
Operating Mode | Side Operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 3.5 W |
Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA | Rated Current (In) | Main Circuit 40 A |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | 1000 V |
Rated Operational Current AC-21A (Ie) | (500 V) 40 A (690 V) 40 A | Rated Operational Current AC-22A (Ie) | (500 V) 40 A (690 V) 40 A |
Rated Operational Current AC-23A (Ie) | (500 V) 40 A (690 V) 40 A | Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 11 kW (400 V) 18.5 kW (415 V) 18.5 kW (500 V) 22 kW (690 V) 30 kW |
Rated Operational Voltage | Main Circuit 690 V AC | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1 kiloampere rms |
Standards | IEC 60947-3 | Switches Operating Mechanism | 30 (Right Side) |
Terminal Type | Screw Terminals | Tightening Torque | 2 N·m |
Wire Stripping Length | Main Circuit 12 ⦠14 mm Main Circuit 0.47 ⦠0.55 in | Wire Stripping Length | Main Circuit 12 ⦠14 mm Main Circuit 0.47 ⦠0.55 in |
Tightening Torque | 2 N·m | Object Classification Code | Q |
ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
eClass | V11.1 : 27371401 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
E-Number (Finland) | 3661972 | Manufacturer ID | 1SCA108942R1001 |
Specifications may be subject to change without notice
