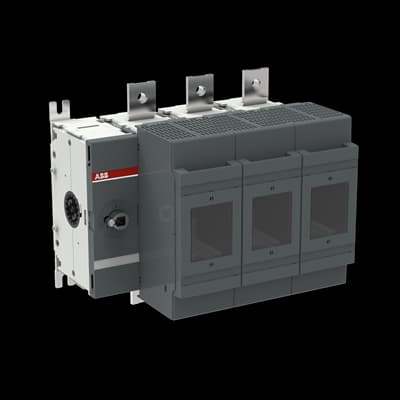

Product Model
OS630D03-3
Selling Points
- 1High reliability with a rated operational current of 630 A at 500 V.
- 2Compact design suitable for smaller enclosures, saving installation space.
- 3Front-operated mechanism with a DIN fuse system for easy installation.
- 4Meets IEC 60947-3 standards for safety and performance.
- 5Handles high short-time withstand currents up to 80 kA at 690 V.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 13.63 kg | Fuse Size | NH2 NH3 |
Fuse System | DIN | Mounting Type | Base mounting |
Number of Poles | 3 | Operating Mode | Front Operated |
Power Loss | at Rated Operating Conditions per Pole 46 W | Rated Operational Voltage | Main Circuit 690 V AC |
Standards | IEC 60947-3 | Terminal Type | Lug terminals |
Tightening Torque | 50 ⦠75 N·m | Tightening Torque | 50 ⦠75 N·m |
ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA114729R1001 |
Specifications may be subject to change without notice
