Product Model

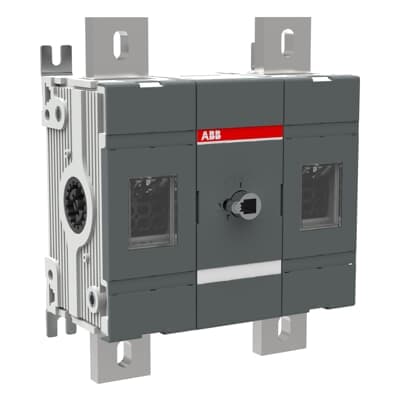

OT1000E11
Selling Points
- 1Designed for efficient and reliable power solutions.
- 2Ideal for industrial applications.
- 3High-quality switch-disconnector with robust design.
- 4Ensures safe and reliable operation in harsh environments.
- 5Compatible with various industrial control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301233D0201 |
Pollution Degree | 3 | Product Net Width | 254.5 mm |
Product Net Height | 306 mm | Product Net Depth / Length | 145.5 mm |
Product Net Weight | 10.5 kg | Conventional Thermal Current (Ithe) | Fully Enclosed 1000 A |
Degree of Protection | Front IP00 | Handle Type | Handle and shaft not included |
Lock Type | No | Mechanical Durability | 6000 |
Number of Poles | 2 | Pollution Degree | 3 |
Power Loss | at Rated Operating Conditions per Pole 19 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1000 A (500 V) 1000 A (690 V) 1000 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1000 A (500 V) 1000 A (690 V) 1000 A | Rated Operational Power AC-23A (Pe) | (400 ... 415 V) 560 kW (500 V) 710 kW (690 V) 1000 kW |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 110 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA | Standards | IEC 60947-3 |
Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Object Classification Code | Q |
ETIM 8 | EC000229 - Handle for power circuit breaker | ETIM 9 | EC000229 - Handle for power circuit breaker |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA109825R1001 |
Specifications may be subject to change without notice
