Product Model

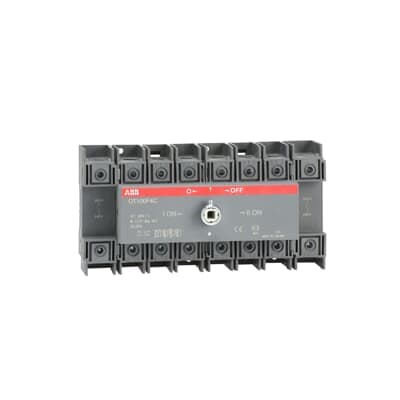

OT100F4C
Selling Points
- 1High-Performance Switching: The OT100F4C change-over switch offers reliable and efficient switching operations.
- 2Durable Construction: Built with robust materials, ensuring long-lasting performance in demanding environments.
- 3Easy Installation: Designed for simple DIN rail mounting, making it easy to integrate into your system.
- 4High Current Capacity: Handles up to 100A, making it suitable for various industrial applications.
- 5Compliance with Standards: Meets UL 98 and IEC60947-3 standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Pollution Degree | 3 |
Product Net Width | 193 mm 7.6 in | Product Net Height | 100 mm 3.94 in |
Product Net Depth / Length | 86 mm 3.39 in | Product Net Weight | 1.3 kg 2.87 lb |
Cable Cross-Section | 10 ... 70 mm² | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 115 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 115 A | Degree of Protection | Front IP20 |
Distance Between Phases | Standard | Fourth Pole Position | Right Side |
Fourth Pole Type | Switched - Simultaneous Function | Handle Color | Black |
Handle Type | Handle and shaft not included | Mechanical Durability | 6000 cycle |
Mounting Type | Base mounting | Number of Poles | 4P |
Operating Mode | Front operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 4 W |
Rated Impulse Withstand Voltage (Uimp) | 8 kV | Rated Insulation Voltage (Ui) | 750 V |
Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 100 A (500 V) 100 A (690 V) 100 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 100 A (500 V) 100 A (690 V) 100 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 80 A (500 V) 60 A (690 V) 40 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 37 kW (500 V) 37 kW (690 V) 37 kW |
Rated Operational Voltage | Main Circuit 750 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
Standards | UL 98 / IEC60947-3 | Switches Operating Mechanism | Mechanism on Top of the Switch |
Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 6 N·m |
Transition Type | Open | Ampere Rating | 100 A |
Horsepower Rating UL/CSA | (acc. to UL 200 V) 30 Hp (acc. to UL 208 V) 30 Hp (acc. to UL 240 V) 30 Hp (acc. to UL 480 V) 50 Hp (acc. to UL 600 V) 50 Hp | Tightening Torque | acc. IEC 60947-1 6 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122233 |
IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3601404 |
E-Number (Norway) | 4363559 | Manufacturer ID | 1SCA105019R1001 |
Specifications may be subject to change without notice
