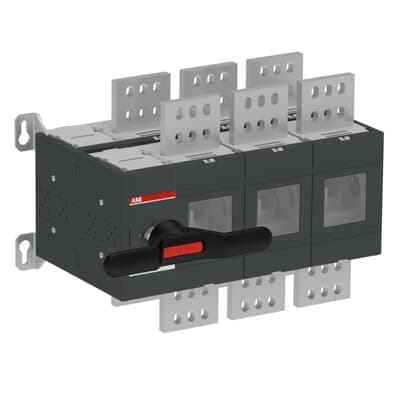

Product Model
OT2500E03DDP
Selling Points
- 1High amperage rating of 2500A for demanding applications.
- 2Compact and space-saving design with IP65 enclosure.
- 3Reliable performance in extreme conditions with a short circuit current rating of 176 kA.
- 4Easy installation and maintenance with a terminal bolt kit included.
- 5Front-operated non-fusible switch with lug terminals for secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301268D0201 |
Pollution Degree | 3 | Product Net Width | 538 mm |
Product Net Height | 376.5 mm | Product Net Depth / Length | 335 mm |
Product Net Weight | 55.6 kg | Degree of Protection | Front IP00 |
Handle Color | Black | Handle Type | Handle and shaft included |
Lock Type | Yes | Mechanical Durability | 6000 |
Number of Poles | 6 | Pollution Degree | 3 |
Power Loss | at Rated Operating Conditions per Pole 85 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 2500 A (500 V) 2500 A (690 V) 2500 A |
Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 2500 A (500 V) 2500 A (690 V) 2500 A | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-Circuit Making Capacity (Icm) | (690 V) 176 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA |
Standards | IEC 60947-3 | Terminal Type | Lug terminals |
Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
Object Classification Code | Q | ETIM 8 | EC000229 - Handle for power circuit breaker |
ETIM 9 | EC000229 - Handle for power circuit breaker | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA117292R1001 |
Specifications may be subject to change without notice
