Product Model

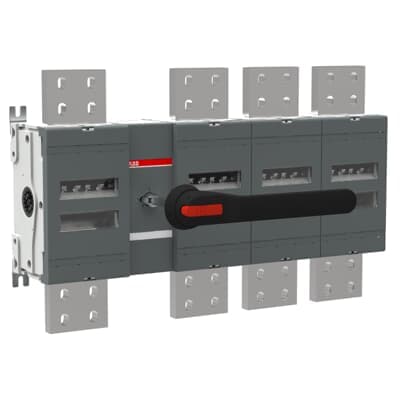

OT4000E13P
Selling Points
- 1High-Performance Design: The OT4000E13P switch-disconnector is designed for high-performance applications with robust safety features.
- 24-Pole Configuration: Equipped with a 4-pole configuration, it offers reliable and efficient switching operations.
- 3Front-Operated Mechanism: The front-operated mechanism ensures easy and accessible operation, enhancing user convenience.
- 4IP65 Protection: The device features an IP65-rated handle and shaft, providing excellent protection against dust and water.
- 5Terminal Bolt Kit Included: Comes with a terminal bolt kit for secure and efficient connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301269D0201 |
Pollution Degree | 3 | Product Net Width | 654 mm |
Product Net Height | 410 mm | Product Net Depth / Length | 146 mm |
Product Net Weight | 48.3 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 3800 A |
Degree of Protection | Front IP00 | Distance Between Phases | Standard |
Fourth Pole Position | Right Side | Fourth Pole Type | Switched - Simultaneous Function |
Handle Color | Black | Handle Type | Handle and shaft included |
Lock Type | Yes | Mechanical Durability | 5000 |
Mounting Type | Base mounting | Number of Poles | 4P |
Operating Mode | Front operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 130 W |
Rated Impulse Withstand Voltage (Uimp) | 8 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 3800 A | Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 3800 A |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 176 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 80 kA | Special Functions | No |
Standards | IEC 60947-3 | Switches Operating Mechanism | Mechanism Between the Poles 13 (Between the Poles) |
Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
eClass | V11.1 : 27371403 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA124861R1001 |
Specifications may be subject to change without notice
