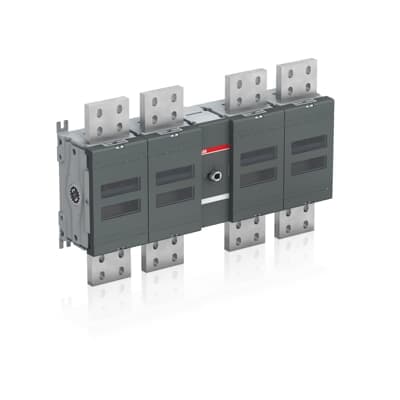

ABB OT4000E22

Selling Points

  • 1High-performance design for reliable operation in extreme conditions.
  • 2Compact size for space-saving installations.
  • 3Comprehensive range of inbuilt safety features for enhanced protection.
  • 4Versatile mounting options including Din Rail, Door, and Base Mount.
  • 5Finger-proof design for improved safety and operator protection.
Product Details
OT4000E22
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP00
Environmental Information
1SCC301269D0201
Pollution Degree
3
Product Net Width
654 mm
Product Net Height
410 mm
Product Net Depth / Length
146 mm
Product Net Weight
47.5 kg
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 3800 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
5000
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 130 W
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21B (Ie)
(380 ... 415 V) 3800 A
Rated Operational Current AC-22B (Ie)
(380 ... 415 V) 3800 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 176 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 80 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism Between the Poles 22 (Between the Poles)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 50 … 75 N·m
Tightening Torque
acc. IEC 60947-1 50 … 75 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Manufacturer ID
1SCA124865R1001

Specifications may be subject to change without notice
