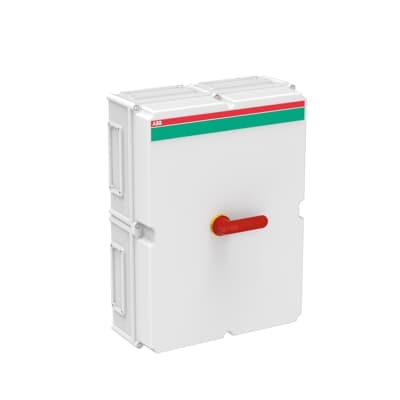

Product Model
OT400DFCC6A
Selling Points
- 1High-Quality Protection: Designed with an IP65 rating for reliable protection against dust and water.
- 2Robust Construction: Built with a durable plastic enclosure for long-lasting performance.
- 3Multiple Contacts: Equipped with 6 poles, 4 NO, and 2 NC auxiliary contacts for versatile control.
- 4Efficient Operation: Rated for 400 A at 500 V AC-22A and 400 A at 690 V AC-22A.
- 5Global Compatibility: Meets EU Directive 2002/95/EC RoHS standards, ensuring compliance worldwide.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
Product Net Width | 560 mm | Product Net Height | 760 mm |
Product Net Depth / Length | 250 mm | Product Net Weight | 26.83 kg |
Cable Entry Position | Top/Bottom | Cable Outlets Per Side | 2xII-flange / 2xII-flange |
Connecting Capacity Main Circuit | Hole Diameter 10 mm Screw Clamp / PE Terminal 4pc,25 ... 120 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
Degree of Protection | acc. to IEC 60529 IP65 | Enclosure Material | Plastic |
Handle Color | Red / Yellow | Handle Type | Pistol handle |
Impact Resistance Rating | Housing IK08 | Maximum Mounted Auxiliary Contacts | 4 NO, 2 NC |
Mounted Auxiliary Contacts | 4 NO, 2 NC | Neutral Type | No neutral terminal |
Number of Auxiliary Contacts NC | 2 | Number of Auxiliary Contacts NO | 4 |
Number of Poles | 6P | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out | Position of PE Terminals | Top In - Bottom Out |
Power Loss | at Rated Operating Conditions per Pole 10 W | Rated Conditional Short-Circuit Current (Inc) | 61.5 kA |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 220 kW (500 V) 280 kW (690 V) 355 kW |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 65 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA | Recommended Screw Driver | Main Circuit M10 |
Standards | IEC 60947-1, -3 | Tightening Torque | Main Circuit 44 N·m |
Recommended Screw Driver | Main Circuit M10 | Tightening Torque | Main Circuit 44 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122205 |
IDEA Granular Category Code (IGCC) | 5166 >> Safety switch | eClass | V11.1 : 27371403 |
WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Manufacturer ID | 1SCA022297R8810 |
Specifications may be subject to change without notice
