ABBIsolating switch
Product Model

OT630E03CP

Manufacturer

ABB

Category

Isolating switch

Product ID

83806

In Stock
Last updated: 2025/5/1
View Specifications

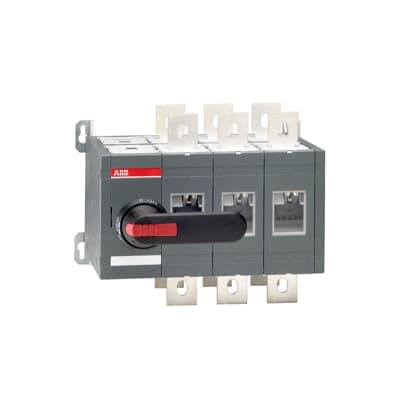

ABB OT630E03CP

Selling Points

  • 13 Pole Manual Change-over Switch: Designed for control panels and motor control centers.
  • 2IP65 Handle: Durable black plastic handle with pistol type design.
  • 3High Current Rating: Handles up to 630A at rated operating conditions.
  • 4Base Mounting: Easy installation with bolt terminations.
  • 5Compact Design: Optimally designed for space-efficient applications.
Product Details
OT630E03CP
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Product Net Width
311 mm 12.24 in
Product Net Height
250 mm 9.84 in
Product Net Depth / Length
280 mm 11.02 in
Product Net Weight
15.37 kg 33.89 lb
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 630 A
Conventional Thermal Current (Ithe)
Fully Enclosed 630 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 25 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 630 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 630 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 355 kW (500 V) 400 kW (690 V) 630 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 20 kiloampere rms
Switches Operating Mechanism
Mechanism at the End of the Switch 03 (Left Side)
Terminal Type
Screw Terminals
Terminal Width
40 mm
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Ampere Rating
630 A
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3641507
E-Number (Norway)
4337005
Manufacturer ID
1SCA022785R6050
