Product Model

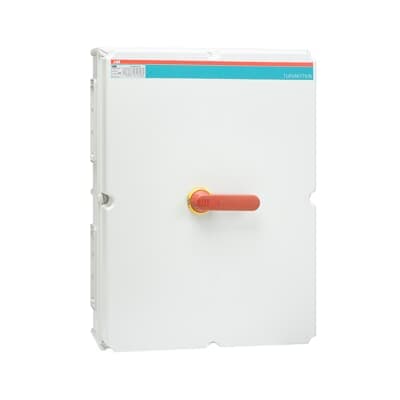

OT630KFCC3A
Selling Points
- 1High-Performance Switch Disconnector: Designed for reliable operation in demanding electrical environments.
- 2Durable Construction: Built with robust materials to withstand harsh conditions and ensure long-term performance.
- 3Easy Installation: Simple mounting options for quick and hassle-free setup.
- 4Enhanced Safety Features: Meets stringent safety standards, including IEC 60947-3 and UL 508.
- 5Versatile Application: Suitable for a wide range of electrical applications, including industrial and commercial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
Product Net Width | 560 mm | Product Net Height | 760 mm |
Product Net Depth / Length | 250 mm | Product Net Weight | 17.83 kg |
Cable Entry Position | Top/Bottom | Cable Outlets Per Side | II-flange / II-flange |
Connecting Capacity Main Circuit | Hole Diameter 12 mm Screw Clamp / PE Terminal 4pc,25 ... 120 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 570 A |
Degree of Protection | acc. to IEC 60529 IP65 | Enclosure Material | Plastic |
Handle Color | Red / Yellow | Handle Type | Pistol handle |
Impact Resistance Rating | Housing IK08 | Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
Mounted Auxiliary Contacts | 2 NO, 1 NC | Neutral Type | No neutral terminal |
Number of Auxiliary Contacts NC | 1 | Number of Auxiliary Contacts NO | 2 |
Number of Poles | 3P | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out | Position of PE Terminals | Top In - Bottom Out |
Power Loss | at Rated Operating Conditions per Pole 25 W | Rated Conditional Short-Circuit Current (Inc) | 90 kA |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 570 A (500 V) 570 A (690 V) 570 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 570 A (500 V) 570 A (690 V) 570 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 315 kW (500 V) 400 kW (690 V) 560 kW |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 80 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA | Recommended Screw Driver | Main Circuit M12 |
Standards | IEC 60947-1, -3 | Tightening Torque | Main Circuit 75 N·m |
Recommended Screw Driver | Main Circuit M12 | Tightening Torque | Main Circuit 75 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122205 |
IDEA Granular Category Code (IGCC) | 5166 >> Safety switch | eClass | V11.1 : 27371403 |
WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Manufacturer ID | 1SCA022278R3710 |
