OTM125F3CMA24D

Manufacturer

ABB

Category

Dual power conversion switch

Product ID

83510

In Stock
Last updated: 2025/4/28
View Specifications

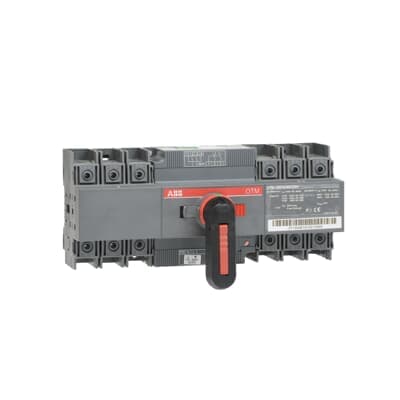

ABB OTM125F3CMA24D

Selling Points

  • 1Designed for reliable operation in industrial environments.
  • 2Equipped with comprehensive safety features including mechanical interlock.
  • 3Compatible with 24V DC motor voltage, suitable for various control circuits.
  • 4Built to withstand harsh conditions with a pollution degree of 3.
  • 5Includes handles and cable cross-section options for seamless integration.
Product Details
OTM125F3CMA24D
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP20
Pollution Degree
3
Product Net Width
230 mm 9.06 in
Product Net Height
100 mm 3.94 in
Product Net Depth / Length
116 mm 4.57 in
Product Net Weight
1.64 kg 3.62 lb
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 125 A
Conventional Thermal Current (Ithe)
Fully Enclosed 125 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Direct mounted handle
Motor Operational Voltage
24 V DC
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 6.3 W
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
800 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 125 A (500 V) 125 A (690 V) 125 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 125 A (500 V) 125 A (690 V) 125 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 90 A (500 V) 70 A (690 V) 50 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 125 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 80 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 45 kW (500 V) 45 kW (690 V) 45 kW
Rated Operational Voltage
Main Circuit 800 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 2.5 kiloampere rms
Switches Operating Mechanism
Mechanism at the End of the Switch
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 6 N·m
Transition Type
Open
Tightening Torque
acc. IEC 60947-1 6 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3601577
Manufacturer ID
1SCA124057R1001
