ABBDual power conversion switch
Product Model

OTM400E4CM24D

Manufacturer

ABB

Category

Dual power conversion switch

Product ID

83538

In Stock
Last updated: 2025/4/28
View Specifications

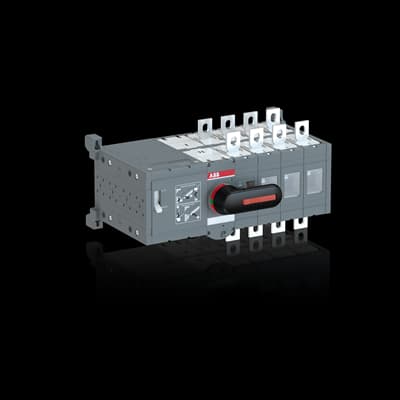

ABB OTM400E4CM24D

Selling Points

  • 1Direct mounted handle for manual operation.
  • 2Includes bolt kit with nut and washers for all terminals.
  • 3Storage clip for the handle and spare parts.
  • 4Suitable for high reliability and easy installation.
  • 5Compatible with various industrial applications.
Product Details
OTM400E4CM24D
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP20
Environmental Information
1SCC303036D0202
Pollution Degree
3
Product Net Width
367 mm 14.45 in
Product Net Height
185 mm 7.28 in
Product Net Depth / Length
235 mm 9.25 in
Product Net Weight
9.4 kg 20.72 lb
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 400 A
Conventional Thermal Current (Ithe)
Fully Enclosed 400 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Direct mounted handle
Motor Operational Voltage
24 V DC
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 10 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 400 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 400 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 220 kW (500 V) 280 kW (690 V) 400 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 15 kiloampere rms
Switches Operating Mechanism
Mechanism at the End of the Switch
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 30 ... 44 N·m
Transition Type
Open
Tightening Torque
acc. IEC 60947-1 30 ... 44 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3641759
Manufacturer ID
1SCA022847R2950
