ABBDual power conversion switch
Product Model

OTM630E2CM230V

Manufacturer

ABB

Category

Dual power conversion switch

Product ID

87806

In Stock
Last updated: 2025/4/30
View Specifications

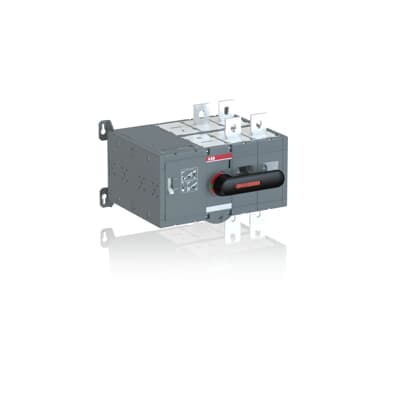

ABB OTM630E2CM230V

Selling Points

  • 1High Performance: Rated for 630A at 400-415V AC, ensuring reliable operation in demanding environments.
  • 2Motorized Operation: Integrated motor drive for easy and efficient switching, reducing manual effort.
  • 3Safety Features: Interlockable design and IP20 protection on the front side, enhancing safety and reliability.
  • 4Versatile Mounting: Suitable for front mounting with 4-hole configuration, allowing flexible installation options.
  • 5Durable Construction: Built-in device plug-in technique with a maximum rated operation voltage of 1000V AC, ensuring long-lasting performance.
Product Details
OTM630E2CM230V
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP20
Pollution Degree
3
Product Net Width
346 mm 13.62 in
Product Net Height
250 mm 9.84 in
Product Net Depth / Length
299 mm 11.77 in
Product Net Weight
10.3 kg 22.71 lb
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 630 A
Conventional Thermal Current (Ithe)
Fully Enclosed 630 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Direct mounted handle
Motor Operational Voltage
220 ... 240 V AC
Mounting Type
Base mounting
Number of Poles
2P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 25 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 630 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 630 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 20 kiloampere rms
Switches Operating Mechanism
Mechanism at the End of the Switch
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Manufacturer ID
1SCA121268R1001
