Product Model

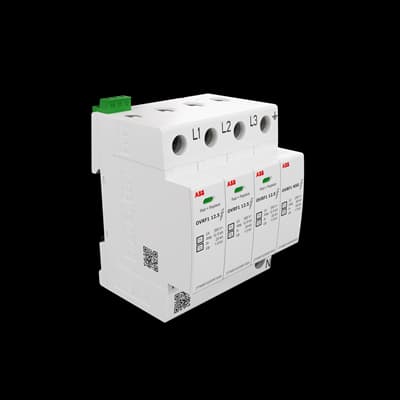

OVRF1 3N 12.5-350 TS
Selling Points
- 1Comprehensive Surge Protection: Safeguards against transient overvoltages and lightning currents.
- 2High Discharge Current: Nominal 20 kA, maximum 80 kA, total 100 kA for robust protection.
- 3Multi-Purpose Compatibility: Compatible with System pro M compact series and various low-voltage distribution systems (TT, TN-S).
- 4Enhanced Safety Features: Includes auxiliary contact and reserve varistor for continuous protection until replacement.
- 5Durable Design: Compact dimensions (71.2 mm width, 76.7 mm depth, 95.8 mm height) and 0.6 kg weight ensure easy installation and minimal space usage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Power Loss | 0.063 W | Number of Batteries | 0 |
Product Net Width | 90.8 mm | Product Net Height | 66.2 mm |
Product Net Depth / Length | 71.2 mm | Product Net Weight | 0.524 kg |
Dimension Diagram | 9AKK108469A0713 | ETIM 8 | EC000941 - Surge protection device for power supply systems |
ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 8536909000 |
Object Classification Code | F | Manufacturer ID | 2TAM514100R1501 |
Specifications may be subject to change without notice
