Product Model

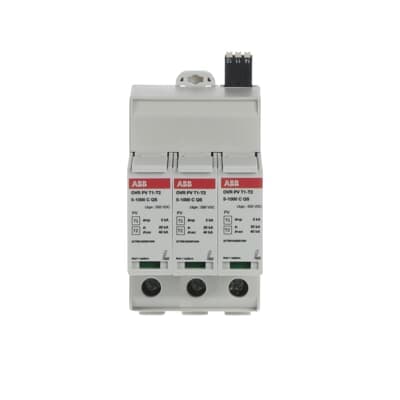

OVR PV T1-T2 5-1000 P TS QS
Selling Points
- 1Comprehensive Surge Protection: Protects against both Type 1 and Type 2 surges, ensuring robust protection against lightning and power grid perturbations.
- 2High Voltage Rating: Operates at a maximum continuous operating voltage of 1000 V DC, suitable for a wide range of photovoltaic applications.
- 3Effective Discharge Current: Handles nominal discharge currents of up to 20 kA and maximum discharge currents of up to 40 kA.
- 4Compact Design: Same width as standard SPD Type 2, ensuring no space compromise when upgrading protection systems.
- 5Reliable End-of-Life Indicator: Features an end-of-life indicator, ensuring timely replacement and maintaining system reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC 61 643-11 / EN 50539-11 | Suitable For | To protect the systems against the transient overvoltage (lightning) |
Rated Voltage (Ur) | 1000 V DC | Voltage Rating DC | 1000 V |
Voltage Protection Level ( Up) | 3.8 kV | Maximum Continuous Operating Voltage (Uc) | (L-PE) 1100 V (L-L) 1100 V (L-N) 0 V (N-PE) 0 V |
Maximum Power Point (MPP) Voltage | 1000 V | Rated Service Short-Circuit Breaking Capacity (Ics) | 11 kA |
Discharge Current | Nominal (8 / 20 µs) 20 kA I (max, 8 / 20 µs) 40 kA I (total, 10 / 350 µs) 5 kA | Impulse Current | I (imp, 10 / 350 µs) 5 kA I (total, 10 / 350 µs) 5 kA |
Short Circuit Withstand Icc | 11 kA | Arrester Class | I II |
Number of Protected Poles | 2 | Number of Poles | 3 |
Number of Conductors | 2 | Transmission Standard | Optic |
Version | Plug-in | Mounting Type | DIN-Rail |
Product Type | QS | Options Provided | Solar |
Preventive Maintenance Feature | No | Status Indicator | Yes |
Number of Batteries | 0 | Fuse Size | 3 modular spacing |
Degree of Protection | IP20 | Maximum Operating Altitude Permissible | Without Derating 4000 m |
Maximum Continuous Operating Voltage UL/CSA (MCOV) | (L-PE) 1100 V (L-L) 1100 V (L-N) 0 V (N-PE) 0 V | Voltage Protection Rating UL/CSA (VPR) | Lpe 2.5 kV Ll 2.5 kV Ln 0 kV Npe 2.5 kV |
Width in Number of Modular Spacings | 3 | Product Net Width | 64 mm |
Product Net Height | 110 mm | Product Net Depth / Length | 84 mm |
Product Net Weight | 0.406 kg | ETIM 8 | EC000941 - Surge protection device for power supply systems |
ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 8535 40 00 |
eClass | V11.0 : 27130805 | Object Classification Code | 141DCC |
Manufacturer ID | 2CTB812051R1000 |
Specifications may be subject to change without notice
