Product Model

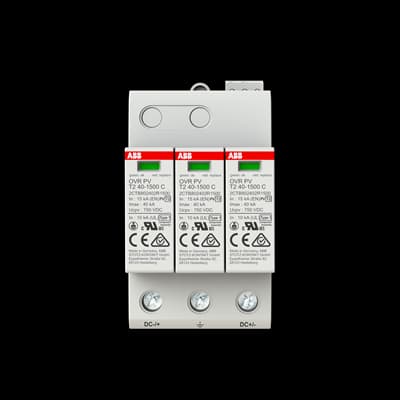

OVR PV T2 40-1500 P TS BULK
Selling Points
- 1Compliant with IEC 61643-11 and UL 1449 4th Edition: Ensures high standards of surge protection.
- 2Type 2 Surge Protective Device (SPD): Capable of discharging indirect lightning strikes.
- 3Nominal Discharge Current (In) 10 kA: Provides robust protection against transient overvoltages.
- 4Maximum Discharge Current (Imax) 40 kA: Offers superior surge absorption capabilities.
- 5DIN Rail Mounting: Easy installation in various electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC 61 643-31 / UL 1449 5th ed | Suitable For | To protect the systems against the transient overvoltage (lightning) |
Rated Voltage (Ur) | 1500 V DC | Voltage Rating DC | 1500 V |
Voltage Protection Level ( Up) | 5 kV | Maximum Continuous Operating Voltage (Uc) | (L-PE) 1000 V (L-L) 1000 V (L-N) 0 V (N-PE) 0 V |
Maximum Power Point (MPP) Voltage | 1500 V | Rated Service Short-Circuit Breaking Capacity (Ics) | 11 kA |
Discharge Current | Nominal (8 / 20 µs) 15 kA I (max, 8 / 20 µs) 40 kA | Short Circuit Withstand Icc | 10 kA |
Arrester Class | II | Number of Protected Poles | 2 |
Number of Poles | 3 | Transmission Standard | Optic |
Version | Plug-in | Mounting Type | DIN-Rail |
Product Type | T2 | Options Provided | Solar |
Preventive Maintenance Feature | No | Status Indicator | Yes |
Number of Batteries | 0 | Fuse Size | 3 modular spacing |
Degree of Protection | IP20 | Maximum Operating Altitude Permissible | Without Derating 2000 m |
Maximum Continuous Operating Voltage UL/CSA (MCOV) | (L-PE) 1000 V (L-L) 1000 V (L-N) 0 V (N-PE) 0 V | Voltage Protection Rating UL/CSA (VPR) | Lpe 3.950 kV Ll 3.950 kV Ln 0 kV Npe 3.950 kV |
Width in Number of Modular Spacings | 3 | Product Net Width | 54 mm |
Product Net Height | 99 mm | Product Net Depth / Length | 66 mm |
Product Net Weight | 0.329 kg | ETIM 8 | EC000941 - Surge protection device for power supply systems |
ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 85363090 |
Object Classification Code | 141DCC | Manufacturer ID | 2CTB802401Z1500 |
Specifications may be subject to change without notice
