Product Model

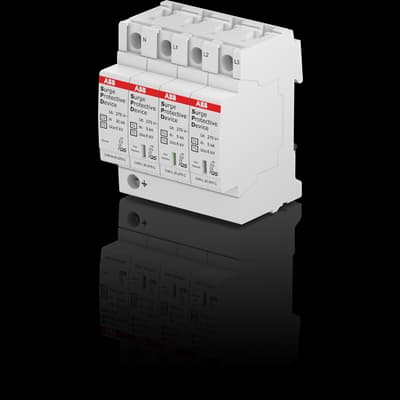

OVR SC N3 40-440 P QS
Selling Points
- 1High Discharge Currents: Nominal 20 kA, Maximum 40 kA, Total 160 kA for effective surge protection.
- 2Robust Protection Levels: Voltage Protection Level (Up) - (L-N) 1.8 kV, (N-PE) 1.4 kV for comprehensive protection.
- 3Compact Design: Net dimensions - 71.2 mm width, 88 mm height, 58 mm depth, weighing 480 g.
- 4Compliance with Standards: Meets IEC 61643-11 and EN 61643-11 standards for reliability and safety.
- 5Versatile Application: Suitable for TT and TN-S low voltage distribution systems, ideal for residential and commercial use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of Batteries | 0 | Product Net Width | 0.0712 m |
Product Net Height | 0.088 m | Product Net Depth / Length | 0.0653 m |
Product Net Weight | 0.402 kg | ETIM 8 | EC000941 - Surge protection device for power supply systems |
ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | CN8 | 8536500000 |
eClass | V11.0 : 27130805 | Object Classification Code | F |
Manufacturer ID | 2TAM223100R4800 |
Specifications may be subject to change without notice
