Product Model

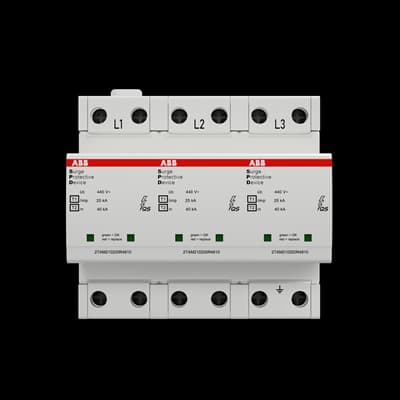

OVR T1-T2 3L 25-440s P QS
Selling Points
- 1High Lightning Current Discharge: Discharges up to 12.5 kA lightning impulse current.
- 2Robust Voltage Protection: Offers a voltage protection level of 1.3 kV for L-N and 1.3 kV for N-PE.
- 3Durable Construction: Built for DIN rail mounting with a maximum conductor cross section of 25 mm².
- 4Remote Signaling Capability: Includes optic signaling for remote monitoring.
- 5Compliant with Safety Standards: Meets IEC 61643-11 and EN 61643-11 standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Power Loss | 0.063 W | Number of Batteries | 0 |
Product Net Width | 108 mm | Product Net Height | 113 mm |
Product Net Depth / Length | 86.2 mm | Product Net Weight | 1.215 kg |
ETIM 8 | EC000941 - Surge protection device for power supply systems | ETIM 9 | EC000941 - Surge protection device for power supply systems |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 8536909000 | Object Classification Code | F |
Manufacturer ID | 2TAM213000R4810 |
Specifications may be subject to change without notice
