Product Model

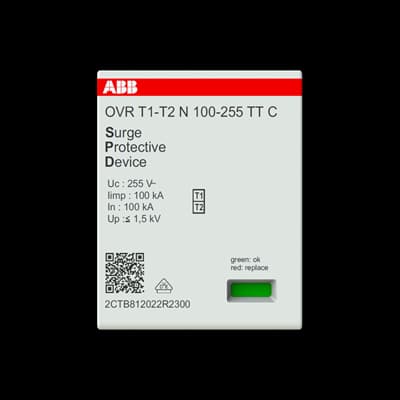

OVR T1-T2 N 100-255 TT C
Selling Points
- 1Advanced Voltage Protection: Offers superior voltage protection levels, ensuring your electrical systems are safeguarded against transient overvoltages.
- 2Robust Design: Built with a durable construction to withstand harsh environmental conditions and frequent power surges.
- 3Compliance with IEC Standards: Meets the stringent requirements of IEC 61643-1, ensuring high reliability and performance.
- 4High Discharge Current: Capable of handling up to 100 kA of discharge current, effectively managing power surges.
- 5Compact and Easy Installation: Designed for plug-in installation, making it easy to integrate into your existing electrical setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC 61643-11 EN 61643-11 UL 1449 5thEd | Type of Low Voltage Distribution System | TT TN-S |
Nominal AC Voltage of the System (Uo) | 240 ⦠400 V | Maximum Continuous Operating Voltage (Uc) | (L-PE) - V (L-N) - V (N-PE) 255 V |
Temporary Overvoltage Test Value (UT) | (N-PE) 1200/200ms V | Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA |
Discharge Current | Nominal (8 / 20 µs) 25 kA I (max, 8 / 20 µs) 60 kA I (total, 10 / 350 µs) 100 kA | Impulse Current | I (imp, 10 / 350 µs) - kA I (total, 10 / 350 µs) 100 kA |
Short Circuit Withstand Icc | 100 kA | Follow Current Extinction Capacity If (I fi) | (N-PE) 50 kA |
Frequency (f) | 45â¦65 Hz | Short-Circuit Protective Devices | gG Type Fuses 315 A |
Arrester Class | I II | Number of Protected Poles | 1 |
Number of Poles | 1 | Version | Plug-in |
Mounting Type | DIN-Rail | Number of Batteries | 0 |
Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +80 °C | Maximum Operating Altitude Permissible | Without Derating 2000 m |
Maximum Continuous Operating Voltage UL/CSA (MCOV) | (L-PE) - V (L-L) - V (L-N) - V (N-PE) 255 V | Type of Low Voltage Distribution System UL/CSA | Single Phase |
Width in Number of Modular Spacings | 2 | Product Net Width | 36 mm |
Product Net Height | 45 mm | Product Net Depth / Length | 61 mm |
Product Net Weight | 0.24 kg | Dimension Diagram | 9AKK108467A9591 |
ETIM 8 | EC001457 - Combined arrester for power supply systems | ETIM 9 | EC001457 - Combined arrester for power supply systems |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 85363090 | UNSPSC | 39-12-16-06 |
Manufacturer ID | 2CTB812022R2300 |
Specifications may be subject to change without notice
