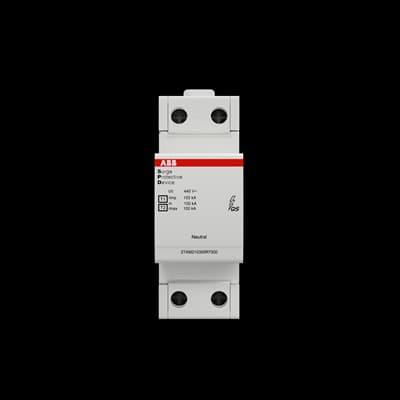

Product Model
OVR T1-T2 N 100-440s P QS
Selling Points
- 1High discharge current capability up to 100 kA.
- 2Compatible with IEC 61643-11 and EN 61643-11 standards.
- 3Plug-in design for easy installation in distribution switchboards.
- 4Excellent technical features for improved safety and performance.
- 5Integrated thermal disconnector and end-of-life indicator for enhanced reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Power Loss | 0.063 W | Number of Batteries | 0 |
Product Net Width | 36 mm | Product Net Height | 85 mm |
Product Net Depth / Length | 86.2 mm | Product Net Weight | 0.280 kg |
ETIM 8 | EC000941 - Surge protection device for power supply systems | ETIM 9 | EC000941 - Surge protection device for power supply systems |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 8536909000 | Object Classification Code | F |
Manufacturer ID | 2TAM210100R7300 |
Specifications may be subject to change without notice
