Product Model

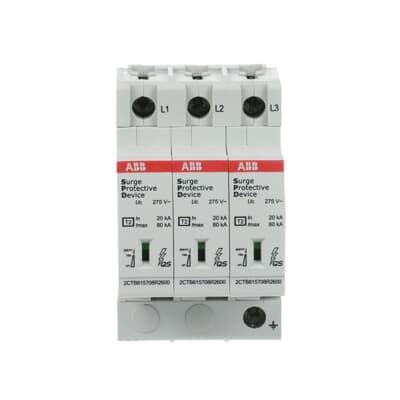

OVR T2 3L 80-275s P TS QS
Selling Points
- 1High Surge Current Protection: 80kA maximum surge current for robust protection against electrical surges.
- 2DIN Rail Mounting: Easy installation on DIN rail for efficient and space-saving setup.
- 3Wide Temperature Range: Operates between -40°C and +80°C, ensuring reliability in various environments.
- 4Patented Safety Reserve System: Extends the lifespan of the installation and reduces downtime risk.
- 5Type 2 SPD Design: Designed to discharge currents generated by indirect lightning strikes, ensuring comprehensive protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC 61643-11 / EN 61643-11 | Type of Low Voltage Distribution System | TN-C |
Suitable For | To protect the systems against the transient overvoltage (lightning) | Rated Voltage (Ur) | 230 V AC |
Nominal AC Voltage of the System (Uo) | 230 / 400 V | Voltage Protection Level ( Up) | 1.4 kV (L-N) 1.4 kV (N-PE) 1.4 kV |
Maximum Continuous Operating Voltage (Uc) | (L-PE) 275 V | Temporary Overvoltage Test Value (UT) | 337 V |
Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA | Discharge Current | Nominal (8 / 20 µs) 20 kA I (max, 8 / 20 µs) 80 kA |
Impulse Current | I (imp, 10 / 350 µs) 6.25 kA | Short Circuit Withstand Icc | 100 kA |
Power Loss | 49 mW | Arrester Class | II |
Number of Protected Poles | 3 | Number of Auxiliary Contacts NC | 1 |
Number of Auxiliary Contacts NO | 1 | Number of Poles | 3 |
Number of Conductors | 3 | Transmission Standard | Optic |
Version | Plug-in | Mounting Type | DIN-Rail |
Product Type | QS | Options Provided | Industry, commercial building |
Auxiliary Circuit Load | Minimum 12Vdc - 10mA Maximum 250Vac - 1A | Preventive Maintenance Feature | Yes |
Status Indicator | Yes | Fuse Size | 4 modular spacing |
Degree of Protection | IP20 | Maximum Operating Altitude Permissible | Without Derating 5000 |
Width in Number of Modular Spacings | 3 | Product Net Width | 53.4 mm |
Product Net Height | 95.8 mm | Product Net Depth / Length | 76.7 mm |
Product Net Weight | 00.45 kg | ETIM 8 | EC000941 - Surge protection device for power supply systems |
ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 85363090 |
eClass | V11.0 : 27130805 | Object Classification Code | 141DCC |
Manufacturer ID | 2CTB815708R0600 |
Specifications may be subject to change without notice
