Product Model

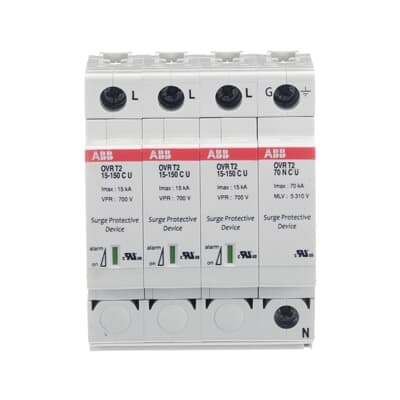

OVR T2 3N 15-150 P U
Selling Points
- 1Protects against indirect lightning surges with a low protection level, ensuring the longevity of your equipment.
- 2Compatible with a wide voltage range of 15-150 P U, making it versatile for various electrical installations.
- 3Backed by a 3-year warranty for peace of mind and long-term reliability.
- 4Equipped with QuickSafe technology, which ensures thermal disconnection and prevents thermal runaway, extending the lifespan of the MOV.
- 5Shipped via global express services like DHL, FedEx, and Swiss Post for fast and reliable delivery.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | UL 1449 Ed3 | Suitable For | To protect the systems against the transient overvoltage (lightning) |
Rated Voltage (Ur) | 150 V AC | Nominal AC Voltage of the System (Uo) | 120 V |
Voltage Protection Level ( Up) | 0.7 kV (L-N) 0.7 kV (N-PE) 0.7 kV | Maximum Continuous Operating Voltage (Uc) | (L-PE) 175 V |
Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA | Discharge Current | Nominal (8 / 20 µs) 5 kA I (max, 8 / 20 µs) 15 kA |
Short Circuit Withstand Icc | 100 kA | Arrester Class | II |
Number of Protected Poles | 4 | Number of Poles | 4 |
Number of Conductors | 4 | Position of Neutral Terminals | Right |
Transmission Standard | Optic | Version | Plug-in |
Mounting Type | DIN-Rail | Preventive Maintenance Feature | No |
Status Indicator | Yes | Fuse Size | 4 modular spacing |
Degree of Protection | IP20 | Maximum Operating Altitude Permissible | Without Derating 5000 |
Maximum Continuous Operating Voltage UL/CSA (MCOV) | (L-PE) 175 V (L-L) 303 V (L-N) 175 V (N-PE) 175 V | Maximum Operating Voltage UL/CSA | 175 V |
Short-Circuit Current Rating (SCCR) | 200 kA | Type of Low Voltage Distribution System UL/CSA | Wye |
Width in Number of Modular Spacings | 4 | Product Net Width | 71.2 mm |
Product Net Height | 90.5 mm | Product Net Depth / Length | 64.8 mm |
Product Net Weight | 0.48 kg | ETIM 8 | EC000941 - Surge protection device for power supply systems |
ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 85363090 |
UNSPSC | 39121610 | eClass | V11.0 : 27130805 |
IDEA Granular Category Code (IGCC) | 4906 >> Surge suppressers | Object Classification Code | 141DBC |
Manufacturer ID | 2CTB802346R0000 |
Specifications may be subject to change without notice
