Product Model

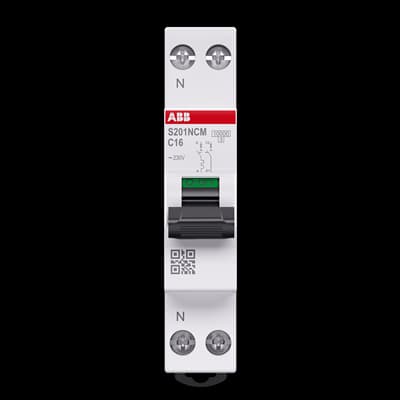

S201NC M-C16
Selling Points
- 1Dual tripping mechanisms for overload and short-circuit protection.
- 2Compliant with IEC/EN 60898-1 and IEC/EN 60947-2 standards.
- 3Rated current of 16A and breaking capacity of 6kA at 230/400V AC.
- 4Energy limiting class and overvoltage category for enhanced safety.
- 5Compact design for DIN rail mounting, ideal for residential and commercial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Power Loss | 4.2 W | Number of Batteries | 0 |
Product Net Width | 17.8 mm | Product Net Height | 91.6 mm |
Product Net Depth / Length | 75 mm | Dimension Diagram | 9AKK108469A4078 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 8536200000 | Object Classification Code | F |
Manufacturer ID | 2TAZ182110R0164 |
Specifications may be subject to change without notice
