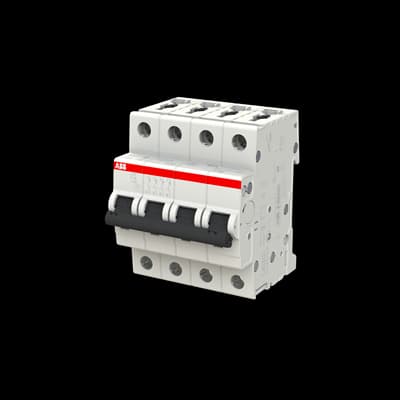

Product Model
S204-C10
Selling Points
- 1Advanced Tripping Mechanisms: Features delayed thermal tripping for overload protection and electromechanical tripping for short circuit protection.
- 2High Current Rating: Rated for 10 A with a maximum operating voltage of 440 V AC.
- 3Durable Construction: Made with insulation group II, RAL 7035 housing material, ensuring robustness and reliability.
- 4Compliant with Standards: Meets IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, and CSA 22.2 No. 235 standards.
- 5Versatile Mounting Options: Compatible with DIN rail mounting (TH35-15 and TH35-7.5 mm) for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 0.018 m | Product Net Height | 0.088 m |
Product Net Depth / Length | 0.069 m | Product Net Weight | 0.125 kg |
Dimension Diagram | 2CDC022007F0010 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 8536200000 |
Object Classification Code | F | Manufacturer ID | 2TAZ116400R0104 |
Specifications may be subject to change without notice
