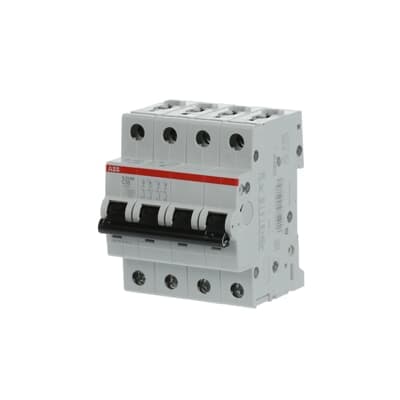

Product Model
S204M-C2
Selling Points
- 1Compliant with IEC/EN 60898-1 and IEC/EN 60947-2 standards for universal use in residential, commercial, and industrial settings.
- 2Dual tripping mechanisms for overload protection and short circuit protection.
- 3High short-circuit breaking capacity up to 10kA at 230/400 V AC.
- 4Compact design with bottom-fitting auxiliary contact to save 50% space.
- 5Durable and sustainable with extended lifetime and recyclable materials.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 0.018 m | Product Net Height | 0.088 m |
Product Net Depth / Length | 0.069 m | Product Net Weight | 0.125 kg |
Dimension Diagram | 2CDC022007F0010 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 8536200000 |
Object Classification Code | F | Manufacturer ID | 2TAZ117400R0024 |
Specifications may be subject to change without notice
