Product Model

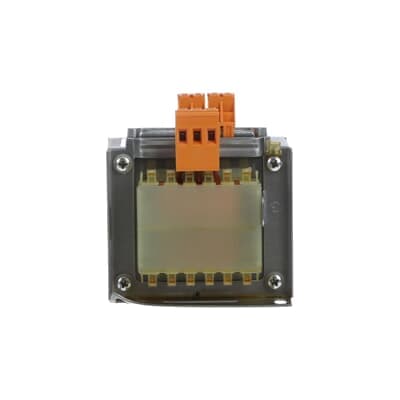

TM-C 160/115-230
Selling Points
- 1Reinforced Insulation: Ensures maximum protection against direct and indirect contacts.
- 2Safety Extra-Low Voltage: Designed to deliver SELV or PELV, making it safe for human contact.
- 3Wide Operating Range: Suitable for 50/60 Hz frequencies and ambient temperatures up to 40°C.
- 4Compact Design: Dimensions (100x89x90 mm) make it easy to integrate into various applications.
- 5Certified and Reliable: ENEC, UR, CSA, and RINA certified for global use in critical power applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | EN 61558-2-2 , UL506 , CSA C22-2-N66 | Rated Insulation Voltage (Ui) | 3.5 kV |
Primary Voltage | 230-400 V AC | Secondary Voltage | 115-230 V AC |
Rated Frequency (f) | 50/60 Hz | Power Loss | 19 W |
Power Supply | 160 V·A | Insulation Class | F |
Fuse Type | aM | Material of Conductor | Copper |
Cable Cross-Section | 6 mm² | Ambient Temperature | max. 40 °C |
Environmental Information | See RoHS Information | Product Net Width | 100 mm |
Product Net Height | 89 mm | Product Net Depth / Length | 90 mm |
Product Net Weight | 3 g | ETIM 8 | EC002486 - One-phase control transformer |
ETIM 9 | EC002486 - One-phase control transformer | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 85043190 |
eClass | V11.0 : 27031302 | Object Classification Code | T |
Manufacturer ID | 2CSM207203R0801 |
Specifications may be subject to change without notice
