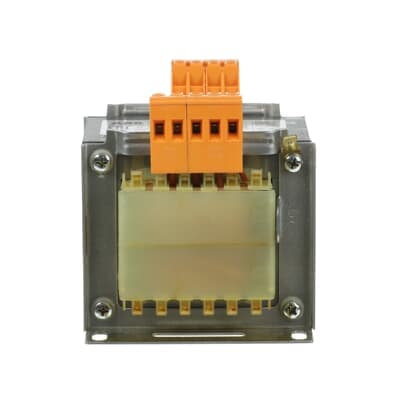

Product Model
TM-S 250/24-48 P
Selling Points
- 1Designed to supply safety extra low voltage circuits (<50 V on no load) without danger.
- 2Meets international safety standards for isolation transformers.
- 3Offers precise control of the input voltage with separate terminals.
- 4Constructed with high-quality copper conductor material for durability.
- 5Measuring 100 mm in width, 105 mm in height, and 110 mm in depth for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | EN 61558-2-2, EN 61558-2-6 , UL506 , CSA C22-2-N66 | Rated Insulation Voltage (Ui) | 4.8 kV |
Primary Voltage | 230-400 ±15 V AC | Secondary Voltage | 24-48 V AC |
Rated Frequency (f) | 50/60 Hz | Power Loss | 21 W |
Power Supply | 250 V·A | Insulation Class | F |
Fuse Type | aM | Material of Conductor | Copper |
Cable Cross-Section | 6 mm² | Ambient Temperature | max. 40 °C |
Environmental Information | See RoHS Information | Product Net Width | 100 mm |
Product Net Height | 105 mm | Product Net Depth / Length | 110 mm |
Product Net Weight | 3.6 g | ETIM 8 | EC002486 - One-phase control transformer |
ETIM 9 | EC002486 - One-phase control transformer | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 85043190 |
eClass | V11.0 : 27031302 | Object Classification Code | T |
Manufacturer ID | 2CSM204683R0801 |
Specifications may be subject to change without notice
