Product Model

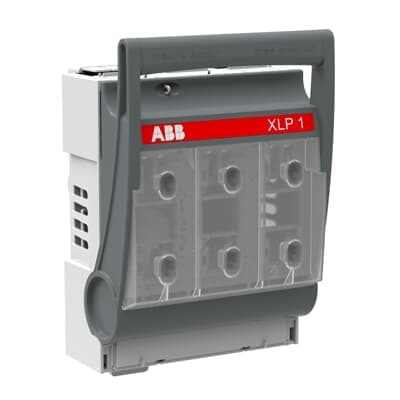

XLP1-A60/85-A-3BC-above
Selling Points
- 1High Current Protection: Provides reliable 250A protection for your electrical needs.
- 2Versatile Installation: Includes an A60/85 adapter and 3 Bridge Clamps for easy installation.
- 3Durable Design: Constructed with high-quality materials for long-lasting performance.
- 4IP30 Protection: Ensures a high degree of protection against solid objects and dust.
- 5Compliant with EU Directives: Meets EU Directive 2011/65/EU and Amendment 2015/863 for environmental compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | IP30 | Product Net Width | 185 mm |
Product Net Height | 292 mm | Product Net Depth / Length | 160 mm |
Product Net Weight | 2.47 kg | Degree of Protection | IP30 |
Device Type Manager (DTM) | Fuseswitchdisconnector | Electronic Fuse Monitoring | No |
Fuse Size | NH1 | Fuse System | DIN |
Handle Type | Front cover 3P | Mounting Type | 60mm Busbar System |
Number of Poles | 3P | Power Loss | at Rated Load 7.5 W |
Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 250 A |
Rated Frequency (f) | Main Circuit 50/60 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
Rated Operational Current AC-21B (Ie) | (690 V) 200 A | Rated Operational Current AC-22B (Ie) | (500 V) 250 A (800 V) 250 A |
Rated Operational Voltage | 500 V AC 690 V AC 800 V AC | Rated Voltage (Ur) | 500 V AC 690 V AC 800 V AC |
Special Functions | Not Included | Standards | IEC60947-3 GB/T14048.3 |
Terminal Type | Cable Clamp | Object Classification Code | S |
ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
eClass | V11.1 : 27371401 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
E-Number (Finland) | 3601057 | Manufacturer ID | 1SEP101919R0001 |
Specifications may be subject to change without notice
