Product Model

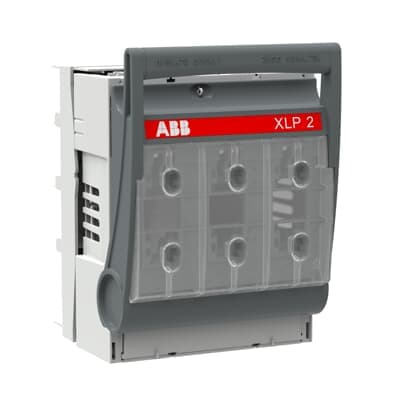

XLP2-A60/120-A-above
Selling Points
- 1High-Performance Rating: 400A rated current for reliable operation.
- 2Easy Installation: Includes A60/120 adapter for seamless integration.
- 3Compact Design: Dimensions (210 mm x 290 mm x 210 mm) for space-efficient installations.
- 4Enhanced Safety: IP30 degree of protection for secure operation.
- 5Versatile Compatibility: Compatible with DIN fuse system and IEC60947-3 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | IP30 | Product Net Width | 210 mm |
Product Net Height | 290 mm | Product Net Depth / Length | 210 mm |
Product Net Weight | 4.6 kg | Degree of Protection | IP30 |
Device Type Manager (DTM) | Fuseswitchdisconnector | Electronic Fuse Monitoring | No |
Fuse Size | NH2 | Fuse System | DIN |
Handle Type | Front cover 3P | Mounting Type | 60mm Busbar System |
Number of Poles | 3P | Power Loss | at Rated Load 13 W |
Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 400 A |
Rated Frequency (f) | Main Circuit 50/60 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
Rated Operational Current AC-21B (Ie) | (690 V) 315 A | Rated Operational Current AC-22B (Ie) | (500 V) 400 A |
Rated Operational Voltage | 500 V AC 690 V AC | Rated Voltage (Ur) | 500 V AC 690 V AC |
Special Functions | Not Included | Standards | IEC60947-3 GB/T14048.3 |
Terminal Type | Lug terminals | Object Classification Code | S |
ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
eClass | V11.1 : 27371401 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
E-Number (Finland) | 3601067 | Manufacturer ID | 1SEP102285R0001 |
Specifications may be subject to change without notice
