Product Model

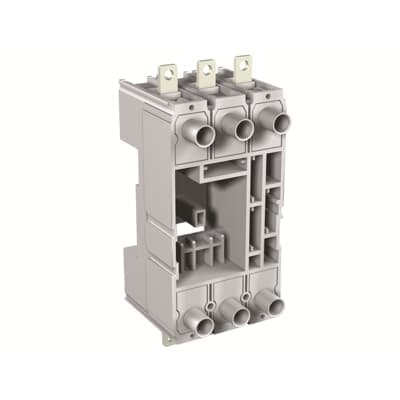

XT1 P FP 3p EF
Selling Points
- 1High-rated service voltage up to 690V AC and 500V DC.
- 2Double insulation and positive operation ensure safe and reliable operation.
- 3Versatile installation options, including horizontal, vertical, and lying down positions.
- 4Advanced electronic trip units with microprocessor technology for precise protection.
- 5Compact dimensions with fixed and plug-in versions available for easy integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Environmental Information | 9AKK108467A6707 | Product Net Weight | 0.69 kg |
Product Main Type | Accessories for Tmax XT | Product Name | Accessory |
Product Type | Fixed Part | Suitable For | XT1 |
Suitable for Product Class | SACE Tmax XT | Version | P |
Configuration Type | Loose or configurable | Number of Poles | 3P |
Order Multiple | 1 piece | Rated Frequency (f) | 50 / 60 Hz |
Rated Impulse Withstand Voltage (Uimp) | 8 kV | Rated Insulation Voltage (Ui) | 800 V |
Rated Operational Voltage | 690 V AC 500 V DC | Rated Uninterrupted Current (Iu) | 160 A |
Standards | IEC60947-2 UL489 | Sub-type | XT1 |
Terminal Connection Type | Plug-In Circuit-Breakers Front Extended | ETIM 8 | EC002043 - Chassis part power circuit breaker |
ETIM 9 | EC002043 - Chassis part power circuit breaker | IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
Object Classification Code | Q | UNSPSC | 39122221 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | eClass | V11.1 : 27370422 |
Manufacturer ID | 1SDA068183R1 |
Specifications may be subject to change without notice
