Product Model

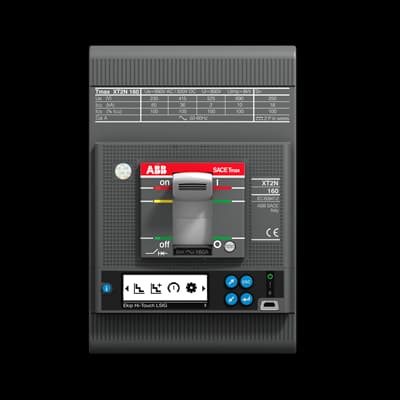

XT2H 160 Ekip M Touch LRIU In=40A 3p F F
Selling Points
- 1The XT2H 160 Ekip M Touch LRIU features an advanced electronic release system for precise and reliable operation.
- 2With a rated short-circuit breaking capacity of 100 kA at 690 V AC, it ensures robust protection against electrical faults.
- 3The fixed three-pole design is compact and space-efficient, making it ideal for various industrial applications.
- 4The circuit breaker supports up to 25,000 operations and 240 hourly operations, ensuring long-term reliability.
- 5Easily interchangeable trip units provide flexibility in configuring the circuit breaker according to specific needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Environmental Information | 9AKK108467A6707 | Product Net Width | 90.0 mm |
Product Net Height | 130 mm | Product Net Depth / Length | 82.5 mm |
Product Net Weight | 1.2 kg | Product Main Type | SACE Tmax XT |
Product Name | Moulded Case Circuit Breaker | Product Type | Automatic Circuit Breaker |
Version | F | Current Type | AC |
Electrical Durability | 8000 cycle 120 cycles per hour | Mechanical Durability | 25000 cycle 240 cycles per hour |
Number of Poles | 3P | Rated Current (In) | 40 A |
Rated Impulse Withstand Voltage (Uimp) | 8 kV | Rated Insulation Voltage (Ui) | 1000 V |
Rated Operational Voltage | 690 V AC | Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA (230 V AC) 100 kA (240 V AC) 100 kA (380 V AC) 70 kA (415 V AC) 70 kA (440 V AC) 65 kA (500 V AC) 50 kA (525 V AC) 30 kA (690 V AC) 15 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA (230 V AC) 100 kA (240 V AC) 100 kA (380 V AC) 70 kA (415 V AC) 70 kA (440 V AC) 65 kA (500 V AC) 50 kA (525 V AC) 30 kA (690 V AC) 15 kA | Rated Uninterrupted Current (Iu) | 160 A |
Release | Ekip M Touch LRIU | Release Type | EL |
Short-Circuit Performance Level | H | Standards | IEC60947-2 GB/T 14028.2 |
Sub-type | XT2 | Terminal Connection Type | Front |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 2TFN000324A1001 |
