Product Model

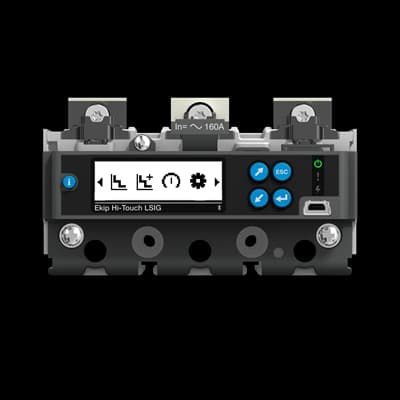

XT2L 160 Ekip Hi-Touch LSI R63 F F 3P
Selling Points
- 1High Current Rating: Handles up to 63A with a high current rating for demanding applications.
- 2Solid-State Release: Features a solid-state release mechanism for fast and reliable operation.
- 3Front Terminal Connection: Easy front terminal connection for quick installation and maintenance.
- 4AC Power Distribution: Suitable for AC power distribution systems, ensuring efficient energy management.
- 5Compliance with IEC Standards: Meets IEC standards for safety and performance, ensuring compliance in various electrical installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Environmental Information | 1SDL000190R0001 | Product Net Width | 90 mm |
Product Net Height | 130 mm | Product Net Depth / Length | 82.5 mm |
Product Net Weight | 1.2 kg | Product Name | Moulded Case Circuit Breaker |
Product Type | CB | Version | F |
Current Type | AC | Electrical Durability | 8000 cycle 120 cycles per hour |
Mechanical Durability | 25000 cycle 240 cycles per hour | Number of Poles | 3P |
Power Loss | at Rated Operating Conditions per Pole 1.70 W | Rated Current (In) | 63 A |
Rated Impulse Withstand Voltage (Uimp) | 8 kV | Rated Insulation Voltage (Ui) | 1000 V |
Rated Operational Voltage | 690 V AC 500 V DC | Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 150 kA (230 V AC) 150 kA (240 V AC) 150 kA (380 V AC) 120 kA (415 V AC) 120 kA (440 V AC) 100 kA (500 V AC) 60 kA (525 V AC) 36 kA (690 V AC) 15 kA (250 V DC) 2 Poles in Series 85 kA (500 V DC) 3 Poles in Series 85 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 150 kA (230 V AC) 150 kA (240 V AC) 150 kA (380 V AC) 120 kA (415 V AC) 120 kA (440 V AC) 100 kA (500 V AC) 60 kA (525 V AC) 36 kA (690 V AC) 18 kA (250 V DC) 2 Poles in Series 85 kA (500 V DC) 3 Poles in Series 85 kA | Rated Uninterrupted Current (Iu) | 160 A |
Release | Ekip Hi-Touch LSI | Release Type | EL |
Short-Circuit Performance Level | L | Standards | IEC 60947-2 GB/T 14028.2 |
Sub-type | XT2 | Terminal Connection Type | Fixed Circuit-Breakers |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 2TFN000263A1001 |
Specifications may be subject to change without notice
