Product Model

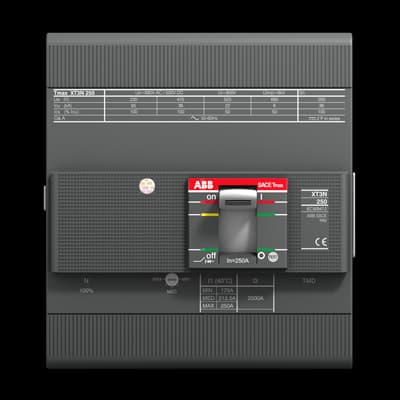

XT3N 225 TMF 70-700 4p F F UL/CSA + Acc
Selling Points
- 1Withstand up to 50 kA at 240 V AC and 25 kA at 480 V AC for reliable operation in demanding environments.
- 2Equipped with thermomagnetic release (TMF) and ultra-violet release (UVR) for fast and safe circuit interruption.
- 3Meets UL/CSA standards and is compliant with EU Directive 2011/65/EU and Amendment 2015/863 for RoHS status.
- 4Constructed to withstand 240 cycles per hour and 25,000 cycles in total, ensuring long-lasting performance.
- 5Compatible with busbar sizes up to 192 mm², offering flexibility in installation and configuration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
CN8 | 85362090 | Country of Origin | Italy (IT) |
Customs Tariff Number | 85362090 | EAN | 8057558446127 |
Invoice Description | XT3N 225 TMF 70-700 4p F F UL/CSA + Acc | Minimum Order Quantity | 1 piece |
Order Code US and Canada | XT3NQ4070AFF000XXX | Package Level 1 EAN | 8057558446127 |
Package Level 1 Units | box 1 piece | Product Main Type | SACE Tmax XT |
Product Name | Moulded Case Circuit Breaker | Selling Unit of Measure | piece |
Short Description | XT3N 225 TMF 70-700 4p F F UL/CSA + Acc | WEEE B2C / B2B | Business To Business |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SDX189914R1 |
Specifications may be subject to change without notice
