Product Model

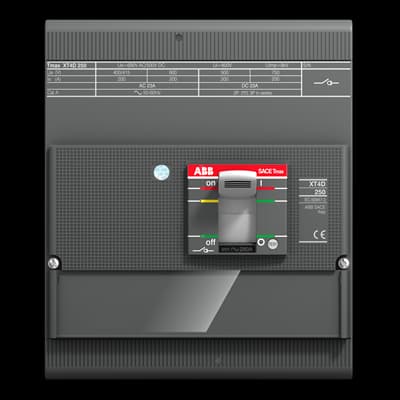

XT4N-D 150 MCS-UL/CSA Im=3000 4p F F
Selling Points
- 1High Performance: Designed for high amperage ratings and reliable operation.
- 2UL and CSA Certified: Meets stringent safety standards for UL and CSA certifications.
- 3Four-Pole Configuration: Suitable for complex electrical systems requiring four poles.
- 4Front Terminal Connection: Easy installation with front terminal connections.
- 5Eco-Friendly Design: Compliant with circular design principles and recyclable materials.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Environmental Information | 9AKK108467A6707 | Product Net Width | 140 mm |
Product Net Height | 160 mm | Product Net Depth / Length | 82.5 mm |
Product Net Weight | 2.35 kg | Product Main Type | SACE Tmax XT |
Product Name | Moulded Case Circuit Breaker | Product Type | Switch Disconnector |
Suitable for Product Class | SACE Tmax XT | Version | F |
CAD Dimensional Drawing | 1SDH001295R0677 | Number of Poles | 4P |
Order Multiple | 1 piece | Power Loss | at Rated Operating Conditions per Pole 7.8 W |
Rated Frequency (f) | 50 / 60 Hz | Rated Operational Voltage | 600 V AC 600 V DC |
Rated Uninterrupted Current (Iu) | 150 A | Short-Circuit Performance Level | N |
Standards | UL489 | Sub-type | XT4 |
Terminal Connection Type | Front | Interrupting Rating acc. to UL489 | (240 V AC) 65 kA (480 V AC) 25 kA (600 V AC) 18 kA (250 V DC) 2 Poles in Series 35 kA (600 V DC) 3 Poles in Series 35 kA |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
IDEA Granular Category Code (IGCC) | 4927 >> Molded case circuit breakers | UNSPSC | 39121616 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | eClass | V11.1 : 27371403 |
Manufacturer ID | 1SDA083042R1 |
Specifications may be subject to change without notice
