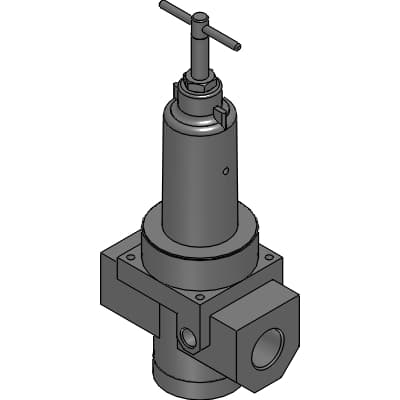

Product Model
2215-6C
Selling Points
- 1The 2215-6C regulator offers precise control over pressure, ensuring stable and consistent performance in industrial applications.
- 2With a maximum working pressure of 2.06 MPa (≈300 psi), this regulator is ideal for high-pressure systems.
- 3Its compact size makes it suitable for space-constrained environments, fitting easily into various industrial setups.
- 4Built with zinc alloy die-casting, the regulator provides durability and resistance to corrosion, ensuring long-lasting performance.
- 5Available with non-relief and high-pressure options, the 2215-6C can be customized to meet specific industrial needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | 2215 : Large | Port size | 6C : Rc3/4 |
Option 1 | Blank : Standard | Option 2 | Blank : None |
Option 3 | Blank : None | Option 4 | Blank : None |
Attached product | Blank : Not attached | A | 110mm |
B | 24mm | C | 44mm |
F | 206mm | H | 63(φ48)mm |
P | 9mm | Infotext | https://www.ckd.co.jp/kiki/en/product/detail/381/2215%E3%83%BB2216?t=list&cid=69&sid=0&p=2 |
Specifications may be subject to change without notice
