Product Model

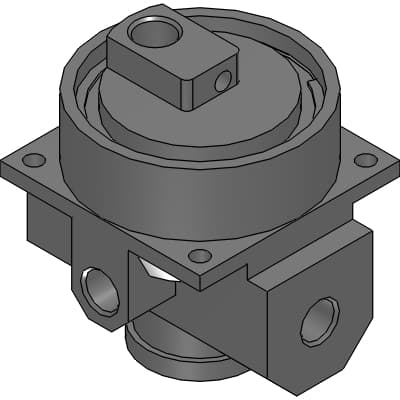

2302-2C-R
Selling Points
- 1Easy Pressure Adjustment: The dial air regulator allows for simple and precise pressure adjustments.
- 2Remote Control Capability: Enables remote control with a pilot port for pressure setting, enhancing operational flexibility.
- 3High Flow Rate Control: Designed to manage large flow rates efficiently, making it suitable for various industrial applications.
- 4Versatile Port Sizes: Available in multiple port sizes (1/4", 3/8", 1/2", 3/4") to accommodate different system requirements.
- 5Reliable Performance: Built with a maximum working pressure of 2.06 MPa and set pressure range of 0.05 to 1.08 MPa for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | 2302 : Standard | Port size | 2C : Rc1/4 |
Option | Blank : Not attached | A | 81mm |
B | 82mm | C | 25mm |
D | 27mm | E | 67.5mm |
F | 56mm | G | -mm |
H | -mm | I | 4-φ5.6 throughmm |
J | φ67mm | K | 4.6mm |
Infotext | https://www.ckd.co.jp/kiki/en/product/detail/383/2302%E3%83%BB2303%E3%83%BB2304?t=list&cid=69&sid=0&p=2 |
Specifications may be subject to change without notice
