Product Model

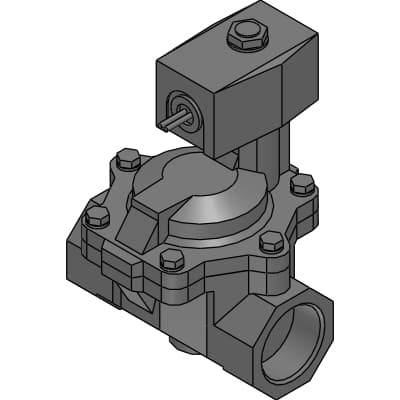

AD21-32A-03A-AC100V
Selling Points
- 1Highly Reliable Design: Built with durable materials for long-lasting performance.
- 2Precise Control: Offers precise actuation with its normally closed type.
- 3Versatile Compatibility: Compatible with AC100V, suitable for a wide range of industrial settings.
- 4Easy Installation: Simple mounting process with standard flange options.
- 5Enhanced Safety Features: Equipped with surge suppressor for added protection against voltage fluctuations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | AD2 | Actuation | 1 : NC (normally closed) type |
Port size | 32A : Rc1 1/4 | Body/sealant combination | 0 : Bronze, Nitrile rubber sealant, Nitrile rubber O-ring, - , Air/water/kerosene/oil (up to 60°C) |
Option : Coil housing | 3A : Open frame type lead wire | Option : Manual operating device (locking) | Blank : None |
Option : Cable gland(Marine cable gland)/Conduit(Conduit pipe) | Blank : None | Option : Surge suppressor | Blank : None |
Voltage | AC 100V : 100 VAC 50/60 Hz, 110 VAC 60 HzV | A | 125mm |
B | 54mm | C | 112mm |
D | 27mm | E | 107mm |
F | 136mm | G | Rc1 1/4mm |
H | 32mm | J | -mm |
K | -mm | L | -mm |
M | -mm | N | -mm |
P | -mm |
Specifications may be subject to change without notice
