CKD CorporationFilters
Product Model

AF5096P-150

Manufacturer

CKD Corporation

Category

Filters

Product ID

50202

In Stock
Last updated: 2025/4/29
View Specifications

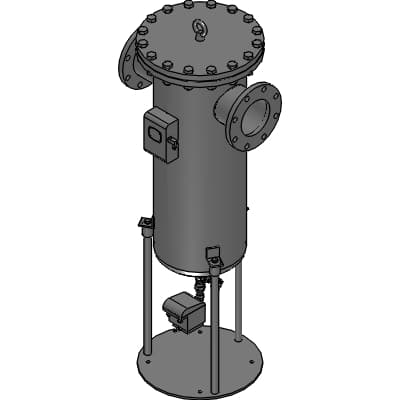

CKD Corporation AF5096P-150

Selling Points

  • 1Durable Construction: Built with high-quality materials for long-lasting performance.
  • 2Precise Control: Offers precise fluid control and flow management.
  • 3Corrosion Resistance: Made with stainless steel components for enhanced corrosion resistance.
  • 4Wide Temperature Range: Compatible with ambient temperatures from -20°C to 60°C.
  • 5Versatile Port Options: Available in various port sizes including Rc, NPT, and G.
Product Details
AF5096P-150
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model No.
AF5
Flow rate classification
096 : 96 m3/min
Main line filter
P
Bore size
150
Drain discharger 5100-4C
Blank : None
Without drain discharger
Blank : None
Companion flange attached
Blank : None
English language specifications
Blank : None
SUS nameplate
Blank : None
Foundation bolt/nut attached (SS400)
Blank : None
Foundation bolt/nut attached (SUS304)
Blank : None
IN/OUT reverse direction
Blank : None
Product photo
Blank : None
A
650mm
B
1320mm
C
1630mm
XD
560mm
XE
16-M24 X 90
XF
M20
G
600
XH
540
J
320
XK
15
Infotext
https://www.ckd.co.jp/kiki/en/product/detail/27/AF5000?t=list&cid=68&sid=0&p=2

Specifications may be subject to change without notice
