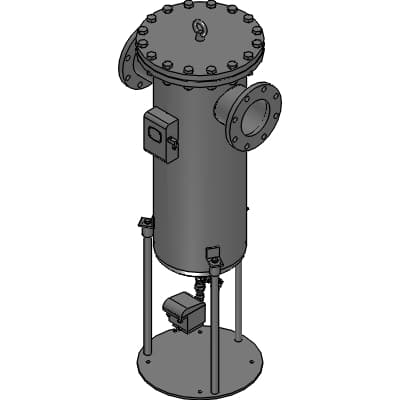

Product Model
AF5160S-200
Selling Points
- 1The AF5160S-200 filter ensures high-quality air treatment with a filtration rating of 0.3 μm, removing impurities and ensuring clean air flow.
- 2Compatible with flow rates from 16 to 256 m³/min (ANR), making it versatile for various industrial applications.
- 3Built with SUS304 for oil-free operation and equipped with an automatic drain system, ensuring long-lasting performance.
- 4Designed to handle high-pressure specifications up to 1.0 MPa, providing robust filtration in demanding environments.
- 5Features a flange port size of 8B and DIN terminal box Pg7, facilitating easy integration into existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | AF5 | Flow rate classification | 160 : 160 m3/min |
Main line filter | S | Bore size | 200 |
Drain discharger 5100-4C | Blank : None | Without drain discharger | Blank : None |
Companion flange attached | Blank : None | English language specifications | Blank : None |
SUS nameplate | Blank : None | Foundation bolt/nut attached (SS400) | Blank : None |
Foundation bolt/nut attached (SUS304) | Blank : None | IN/OUT reverse direction | Blank : None |
Product photo | Blank : None | A | 700mm |
B | 1350mm | C | 1693mm |
XD | 620mm | XE | 20-M24 X 90 |
XF | M20 | G | 600 |
XH | 610 | J | 350 |
XK | 15 | Infotext | https://www.ckd.co.jp/kiki/en/product/detail/27/AF5000?t=list&cid=68&sid=0&p=2 |
Specifications may be subject to change without notice
