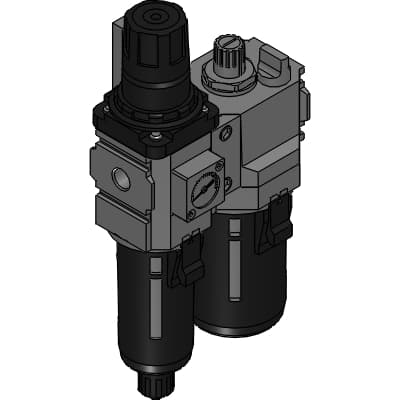

Product Model
C8010-20-W
Selling Points
- 1Compact modular design for easy integration into existing systems.
- 2Integrated filter, regulator, and lubricator for comprehensive air quality control.
- 3Compatible with compressed air, ensuring reliable operation in various environments.
- 4Robust construction with a maximum working pressure of 1 MPa, suitable for demanding industrial use.
- 5Easy maintenance with accessible components and optional accessories like pressure gauges and brackets.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | C8010 | Filter / regulator | W8000 |
Lubricator | L8000 | Port size | 20 : 3/4 |
Port thread type | Blank : Rc thread | Drainage | Blank :With manual drain cock |
Drainage Lubricator | Blank : Lubricator without drain cock | Bowl material | Blank : Polycarbonate bowl |
Element | Blank : 5μm | Pressure range | Blank : 0.05 to 0.85 MPa |
Relief | Blank : With relief mechanism | Pressure gauge | Blank :Standard pressure gauge (G401-W) |
Flow direction | Blank : Standard flow (left to right) | Pressure switch | Blank : Without pressure switch |
Shut-off / lockout valve | Blank : Without valve | Displayed unit | Blank : MPa display (Rc thread), psi display (NPT thread), bar display (G thread) |
Piping adaptor set (included) | Blank : Not attached | Adaptor thread type | Blank : None |
Attachment gauge type | Blank : Not attached |
Specifications may be subject to change without notice
