Product Model

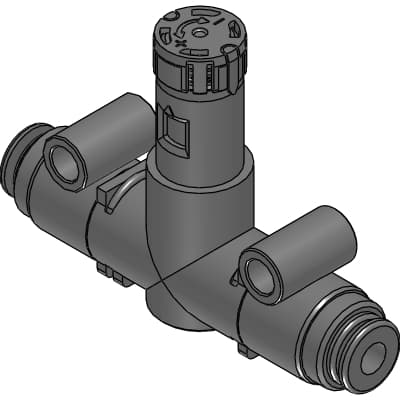

DSC-S1-06-H44
Selling Points
- 1The DSC-S1-06-H44 speed controller boasts an inline type with a dial that offers linear flow characteristics for precise control.
- 2Equipped with an adjustable dial, this speed controller allows for easy and accurate adjustments to meet specific application needs.
- 3Designed to handle compressed air with a max working pressure of 1.0 MPa and a min working pressure of 0.1 MPa, ensuring reliable performance in various environments.
- 4The compact design makes it ideal for use in tight spaces, enhancing its versatility in different industrial settings.
- 5Capable of achieving flow rates up to 170 L/min (ANR), making it suitable for applications requiring high fluid flow management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | DSC | Product | -S : Inline |
Dial direction | 1 : Side | Body size | 06 : 1/8 thread equivalent |
Compatible tube O.D. | H44 : ø4 | Flow type | Blank : Standard flow |
A When locked | 36.8mm | A During adjustment | 38.3mm |
B | 19.1mm | C | 12mm |
D | 5.6mm | E | 54.6mm |
F | 12.0mm | I | 8.1mm |
J | 30.8mm | K | 12 x n + 4.2mm |
L | 3.5mm | Mounting hole diameter | 4.3mm |
Tube insert length | 12.9mm |
Specifications may be subject to change without notice
