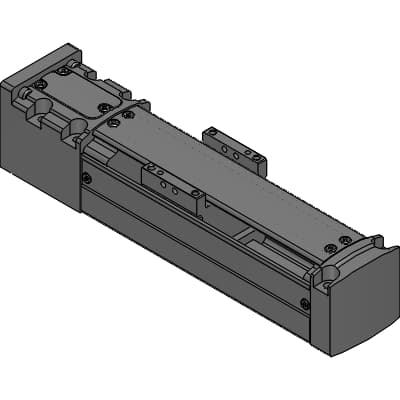

Product Model
ESA-04LE-050050NNN-M1NNNN
Selling Points
- 1High precision with 350 mm stroke length.
- 2Fast acceleration and deceleration at 0.3 G.
- 3Robust motor speed of 3000 rpm.
- 4Uni-directional operation for reliable control.
- 5Compact design for space-efficient installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | ESA | Body size | 04 : Body width 48mm |
Motorless | L : Motorless | Motor mounting direction | E : Direct mounting |
Screw Lead | 05 : Screw lead 5mm | Stroke length | 0050 : Stroke length: 50mm |
Position of slider | 0mm | N | N : None |
NN | NN : None | Motor type | M |
Motor capacity | 1 | Sensor specification | NN : None |
Origin sensor | N : None | Limit sensor | N : None |
Infotext | ckd_cn/electric_actuator/esa_series/esa_en_0116.pdf | Body length | 229mm |
Full length | -mm | L2 | 197mm |
A | 178mm | A' | 51mm |
B | 100mm | C | 208mm |
C' | 21mm | M | 5 |
P | 6 | Weight | 1.8kg |
Specifications may be subject to change without notice
