Product Model

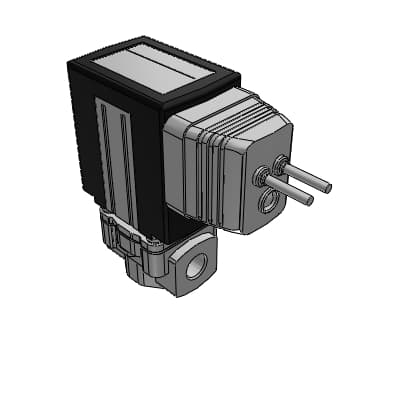

FFB-2106ASA3A1
Selling Points
- 1High Durability: Built with advanced materials and design to withstand harsh industrial conditions.
- 2Precision Control: Offers precise control over pneumatic systems with reliable operation.
- 3Wide Temperature Range: Suitable for use in various temperature ranges, ensuring consistent performance.
- 4Compact Design: Space-saving design for easy integration into industrial machinery.
- 5Enhanced Safety Features: Equipped with safety features to prevent wear and ensure safe operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | FFB | Valve size | 2 : Width 24mm |
Function | 1 : NC (open when energized) | Port size | 06 : 1/8 |
Thread and pressure display unit on nameplate | A : Rc thread, MPa | Orifice diametar | S : φ1.5 |
Material (Body, Seal, Treatment, Remarks) | A : Aluminium, NBR, －, Compressed air/dry air | Coil Heat Resistant Class | 3 : Class 130 (B) |
Coil options | A : Lead wire (300mm) | Angle of coil options | 0° |
Angle of DIN terminal box | 0° | Angle of HP terminal box | 0° |
Rated Voltage | 1 : 100 VAC 50/60Hz | Option | Blank : None |
Mounting plate direction | Blank : None | HPLINK | https://www.ckd.co.jp/kiki/en/product/detail/1005/FFB%E3%83%BBFFG?t=list&cid=49&sid=0 |
Specifications may be subject to change without notice
