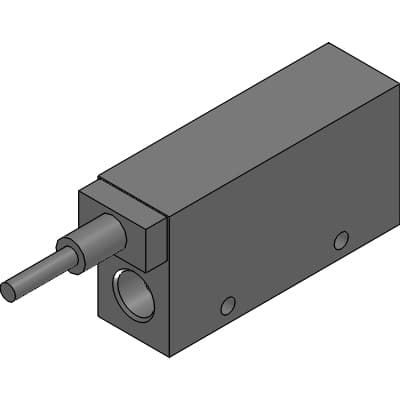

Product Model
FSM3-B005U2AA1J1N-C
Selling Points
- 1Accurate Flow Measurement: Measures flow rates from 15 mL/min to 500 mL/min with ±3% F.S. accuracy.
- 2Versatile Gas Compatibility: Supports air, nitrogen, argon, carbon dioxide, and mixed gases (Ar:CO2 8:2).
- 3Compact Design: Resin body with various port sizes (φ4 mm to φ10 mm) for easy installation.
- 4Reliable Performance: Operating ambient temperature range of 0 to 50°C and humidity up to 90% RH.
- 5Flexible Output Options: Offers 1 to 5 V voltage output and 4 to 20 mA current output for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | FSM3 | Display | B : Bar display |
Flow rate range (full scale flow rate) | 005 : 500mL/min | Flow direction | U : Uni-direction |
Body material/compatible fluids | 2 : SUS, Air | Port size | AA : Rc1/8 |
Piping direction | 1 : Straight | Output specifications | J : Analog voltage output x 1-point |
Unit specifications | 1 : SI units only | Valve option | N : None |
Lead wire | C : 4 conductor 1 m | Mounting attachments | Blank : None |
Included documents | Blank : None | Clean-room specifications | Blank : None |
Option (ATEX Compliant) | Blank : None |
Specifications may be subject to change without notice
