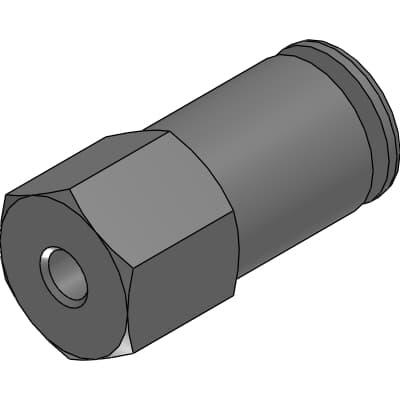

Product Model
GWJS3-M3-M
Selling Points
- 1Compact design for space-saving in industrial applications.
- 2Compatible with metric tubes and BSPT/Metric threads.
- 3High reliability due to secure sealing and robust construction.
- 4Easy installation with push-to-connect mechanism.
- 5Suitable for various industries including clean room environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | GWJS3-M3-M | Compatible tube O.D. φ | 3.2mm |
Thread | M3x0.5 | Hex | 8mm |
L | 17.5mm | A | 4mm |
B | 12.5mm | C | 7.8mm |
L1 | 7.0mm | Min. bore size | 2.5mm |
Eff. X-sectional area | 2.5mm^2 | Weight | 4.0g |
Specifications may be subject to change without notice
