Product Model

GWJT3-6

In Stock
Last updated: 2025/4/28

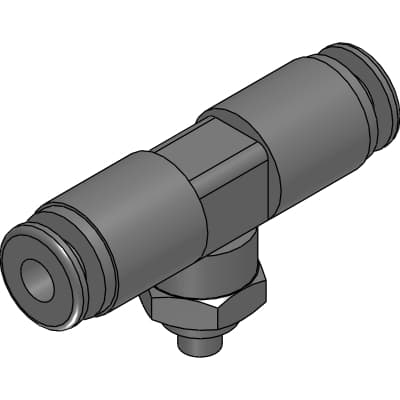

CKD Corporation GWJT3-6

Selling Points

  • 1Designed for space-saving applications, the GWJT3-6 is perfect for narrow spaces.
  • 2Made with flame-resistant resin (UL94 V-0 standard), ensuring safety in various work environments.
  • 3The push ring mechanism allows for smooth and secure tubing removal without tools.
  • 4Ensures a tight seal between the tube and fitting, preventing leaks and ensuring reliability.
  • 5Compatible with various tube O.D.s (Φ3.2, Φ4, Φ6, Φ8, Φ10, Φ12, Φ16) and port sizes (M3, M5, 1/8, 1/4, 3/8, 1/2).
Product Details
GWJT3-6
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model No.
GWJT3-6
Compatible tube O.D. φ
3.2mm
Thread
R1/8
Hex
10mm
L1
17.5mm
L2
15.5mm
A
8.0mm
B
12.5mm
C
8.5mm
Min. bore size
2.2mm
Eff. X-sectional area
2.7mm^2
Weight
7.1g

Specifications may be subject to change without notice
