Product Model

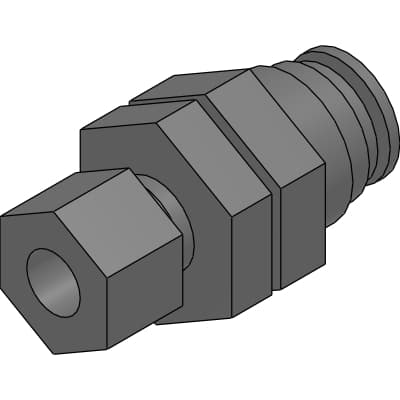

GWM10-0-X
Selling Points
- 1Compact size for space-saving applications.
- 2Flame-resistant white body for safe working environments.
- 3Easy push-in installation with V-shaped packing seal.
- 4Durable and flexible due to high mechanical strength.
- 5Compatible with soft nylon and urethane tubes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | GWM10-0-X | Applicable tube O.D.∅ | 10mm |
H1 | 17mm | H2 | 22mm |
H3 | 23mm | L | 40.0mm |
L1 | 19.5mm | B1 | 21.5mm |
B2 | 14.5mm | E | 1mm |
MxP | M20 x 1 | Installation hole diameter | 21mm |
Min. hole diameter | 8.0mm | Effective sectional area | 30mm^2 |
Specifications may be subject to change without notice
